EDURange Cloud App Configuration System

Overview

The EDURange Cloud app configuration system is responsible for transforming challenge data from the database into a format that can be consumed by the WebOS interface. This document explains the flow of data from the database to the final WebOS configuration.

Key Files

• dashboard/app/api/webos/service.ts - Main service layer for WebOS operations
• dashboard/lib/webos/transform.ts - Data transformation utilities
• dashboard/lib/webos/types.ts - TypeScript interfaces for WebOS format
• dashboard/app/api/competition-groups/[id]/challenges/[challengeId]/route.ts - Challenge API endpoint
• dashboard/components/webos/apps/challenge-prompt/ChallengePrompt.tsx - Challenge prompt app component

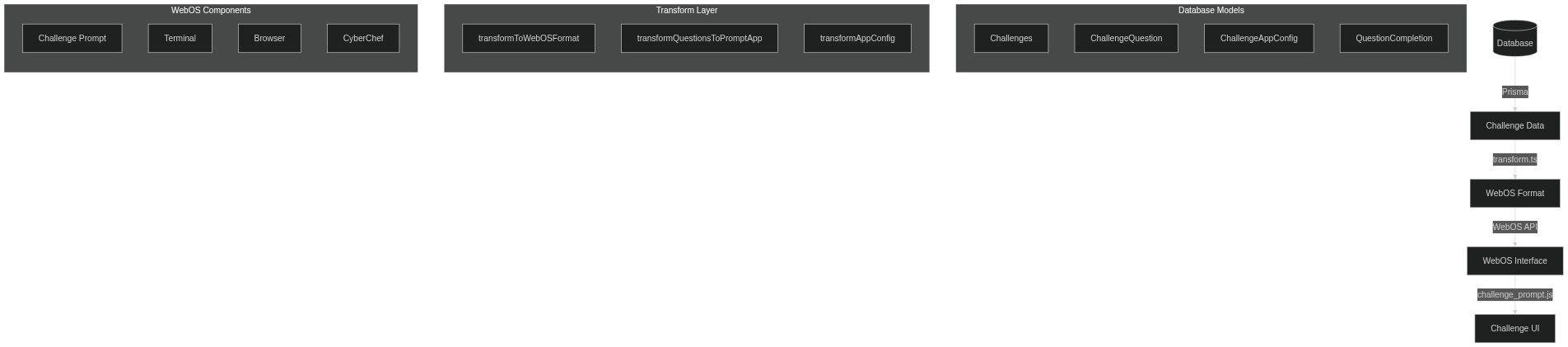

Data Flow

Database Structure

Challenge Models

Located in dashboard/prisma/schema.prisma:

• Challenges: Core challenge information
• ChallengeQuestion: Questions associated with challenges
• ChallengeAppConfig: App configurations for each challenge
• QuestionCompletion: Tracks user progress on questions

Transformation Process

1. Data Retrieval

Located in dashboard/app/api/webos/service.ts:

// Service layer fetches challenge data with related models
const challenge = await prisma.challenges.findUnique({
  include: {
    questions: true,
    appConfigs: true
  }
});

2. Data Transformation

Located in dashboard/lib/webos/transform.ts:

1. Question Transformation

// Converts questions into WebOS prompt app format
export const transformQuestionsToPromptApp = (questions: ChallengeQuestion[]) => {
  return questions.map(q => ({
    id: q.id,
    type: q.type,
    content: q.content,
    points: q.points,
    ...(q.type === 'text' && { answer: q.answer }) // Only for text questions
  }));
};

2. App Configuration Transformation

// Converts database app configs into WebOS format
export const transformAppConfig = (appConfigs: ChallengeAppConfig[]) => {
  return appConfigs.map(app => ({
    id: app.appId,
    icon: app.icon,
    title: app.title,
    // ... other properties
  }));
};

3. Final WebOS Format Located in dashboard/lib/webos/types.ts:

export interface WebOSChallengeConfig {
  id: string;
  name: string;
  challengeImage: string;
  difficulty: ChallengeDifficulty;
  AppsConfig: AppConfig[];
}

WebOS Integration

Challenge Prompt App

Located in dashboard/components/webos/apps/challenge-prompt/:

• ChallengePrompt.tsx - Main component
• QuestionList.tsx - Question rendering
• AnswerSubmission.tsx - Answer handling
• ProgressTracker.tsx - Completion tracking

App Types

Located in dashboard/components/webos/apps/:

1. Built-in Apps

   • terminal/ - Terminal emulator
   • browser/ - Web browser
   • cyberchef/ - CyberChef tool
   • code-editor/ - Code editor
   • settings/ - Settings app

2. Challenge-Specific Apps

   • Custom web interfaces (challenge-dependent)
   • Specialized tools (challenge-dependent)
   • Challenge prompt (challenge-prompt/)

Question Types and Verification

Flag Questions

Verification handled in dashboard/app/api/competition-groups/[id]/challenges/[challengeId]/questions/[questionId]/complete/route.ts:

• Answers stored in Kubernetes secrets
• Verified server-side
• No answer included in WebOS config

Text Questions

Verification handled in dashboard/components/webos/apps/challenge-prompt/AnswerSubmission.tsx:

• Answer included in WebOS config
• Verified client-side
• Case-sensitive matching

Configuration Example

Example challenge configuration in WebOS format:

{
  "id": "challenge-123",
  "name": "Example Challenge",
  "AppsConfig": [
    {
      "id": "challenge-prompt",
      "challenge": {
        "pages": [{
          "questions": [
            {
              "type": "flag",
              "content": "Find the hidden flag"
            },
            {
              "type": "text",
              "content": "What command lists files?",
              "answer": "ls -la"
            }
          ]
        }]
      }
    },
    {
      "id": "terminal",
      "screen": "displayTerminal",
      "additional_config": {
        "disableScrolling": true
      }
    }
  ]
}
